Parametric Wheel Arch modifer (Blender)

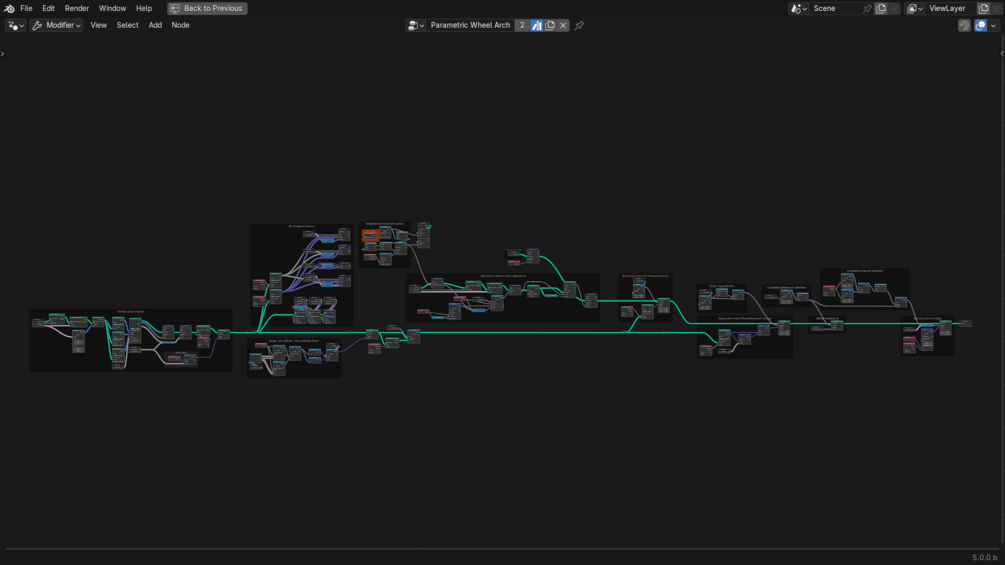

A Geometry Nodes modifier to create parametric wheel arches in Blender

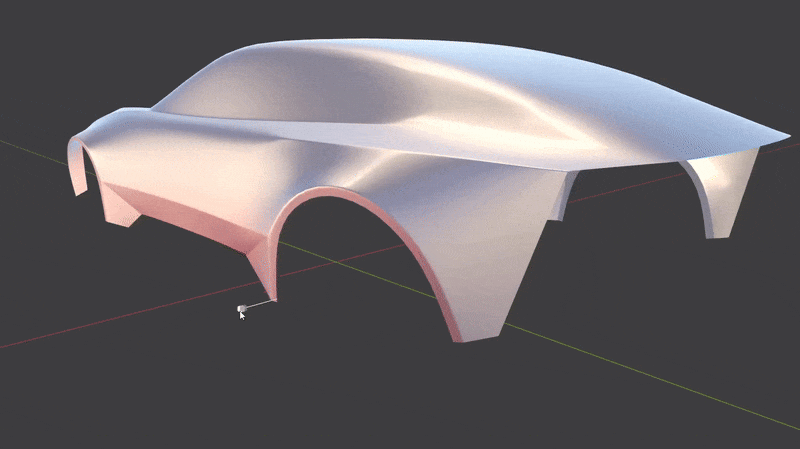

Once added, the points offset into a perfectly shaped, customizable wheel arch with evenly distributed points that match the original position and radius as closely as possible.

See the explaining video for further guidance (at the top of this page)

Important note

I model with bevel weights and a bevel modifier for non-destructive support loops - check the included demo file for the exact setup.

If this doesn't suit your modeling style, feel free to contact me on email or linkedin and help me improve this tool for more workflows!

Highlights

• Points Distribution methods: Nearest/Even/Smart
  • (Smart distribution keeps important points close to their initial location)

• Adjustable Radius & Edge Thickness
• Offset the wheel arch in/out w. Bézier interpolation
• Generalized to your typical wheel arch topology
• Works with any number of underlying vertices

Disclaimer

This tool relies on underlying topology and does not generate new points/faces (see the explaining video).

Generating wheel arches from scratch might come in a free update.
